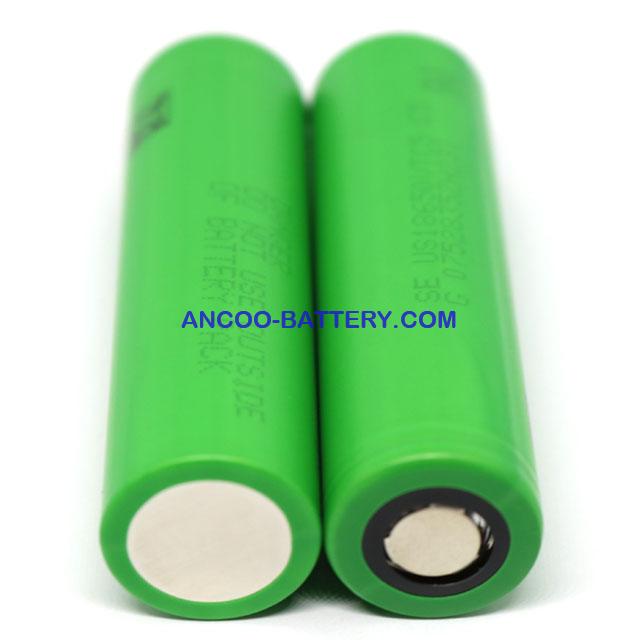

Sony VTC5 Murata US18650VTC5 30A High Power Li-ion Battery Cells
>50K in stock, 2022+ date code, fast shipping by ocean or air.
RoHS UL1642 CB IEC62133 MSDS UN38.3 test report and certificates.
1.1.2 Cell Name : US18650VTC5
1.1.3 Sony Code : 49928190
1.2 Cell Shape and Weight
1.2.1 Cell Shape : Cylindrical
1.2.2 Size (with plastic tube) : Diameter 18.35mm max, Length 65.20mm max
1.2.3 Weight : 44.3g Average
1.3 Safety Regulation: UL1642
2. Cell Specifications
Nominal Capacity(0.2C discharge) 2600mah 9.36Wh 3.6V (average discharge voltage) at room temperature,2.0V cut off
Rated Capacity(0.2C discharge)2500mah 9.00Wh minimum capacity at room temperature,2.0V cut off
Capacity at 1C 2563mAh 9.23Wh average capacity at room temperature,2.5V cut off
Capacity at 10A 2577mAh 8.80Wh average capacity at room temperature,2.5V cut off
Nominal Voltage 3.6V
Internal Impedance 13.0mΩ Typ. measured by AC1kHz
Cycle Performance 70% Min. of Initial capacity at 300 cycles 10A discharge at room temperature,2.5V
* Standard Charge Condition
Charge Method : constant current constant voltage
Charge Up Voltage : 4.2± 0.05V
Charge Current : 2.5A
Charge Time : 2.5h
Ambient Temperature : 23oC
Model |
Nominal Capacity (mAh) |
Positive Electrode Material |
Negative Electrode Material |
Nominal (Rated) Voltage (V) |
Weight (g) |
Diameter (mm) |
Height (mm) |
Continuous Max Discharge Current (A) |
Features |
---|---|---|---|---|---|---|---|---|---|
US18650VTC4 (NRND) | 2,100 | NCM | Gr | 3.6 | 45.0 | φ18 | 65 | 30 | power |
US18650VTC4A (NRND) | 2,100 | NCM | Gr | 3.7 | 46.8 | φ18 | 65 | 35 | power |
US18650VTC5 | 2,600 | NCA | Gr | 3.6 | 44.3 | φ18 | 65 | 30 | power |
US18650VTC5A | 2,600 | NCA | Gr, SiO | 3.6 | 47.1 | φ18 | 65 | 35 | power |
US18650VTC5D | 2,800 | NCA | Gr, SiO | 3.6 | 46.7 | φ18 | 65 | 35 | power |
US18650NC1 (NRND) | 2,900 | NCA | Gr | 3.6 | 45.3 | φ18 | 65 | 8 | runtime |
US18650VTC6 | 3,120 | NCA | Gr, SiO | 3.6 | 46.6 | φ18 | 65 | 30 | power |
US18650VC7 (NRND) | 3,500 | NCA | Gr, SiO | 3.6 | 47.2 | φ18 | 65 | 8 | runtime |
US18650FTC1 (NRND) | 1,100 | LFP | Gr | 3.2 | 38.8 | φ18 | 65 | 20 | life, safety |
US21700VTC6A | 4,100 | NCA | Gr, SiO | 3.6 | 67.5 | φ21 | 70 | 40 | power |
US26650FTC1A (NRND) | 3,000 | LFP | Gr | 3.2 | 84.0 | φ26 | 66 | 25 | life, safety |
