Murata Li-Ion cells

  • SONY VTC4 Murata US18650VTC4 2100mAh 3.7V 30A Battery
  • SONY VTC4 Murata US18650VTC4 2100mAh 3.7V 30A Battery
  • SONY VTC4 Murata US18650VTC4 2100mAh 3.7V 30A Battery
  • SONY VTC4 Murata US18650VTC4 2100mAh 3.7V 30A Battery
SONY VTC4 Murata US18650VTC4 2100mAh 3.7V 30A BatterySONY VTC4 Murata US18650VTC4 2100mAh 3.7V 30A BatterySONY VTC4 Murata US18650VTC4 2100mAh 3.7V 30A BatterySONY VTC4 Murata US18650VTC4 2100mAh 3.7V 30A Battery

SONY VTC4 Murata US18650VTC4 2100mAh 3.7V 30A Battery

Murata US18650VTC4 2100mAh 30A Battery cells

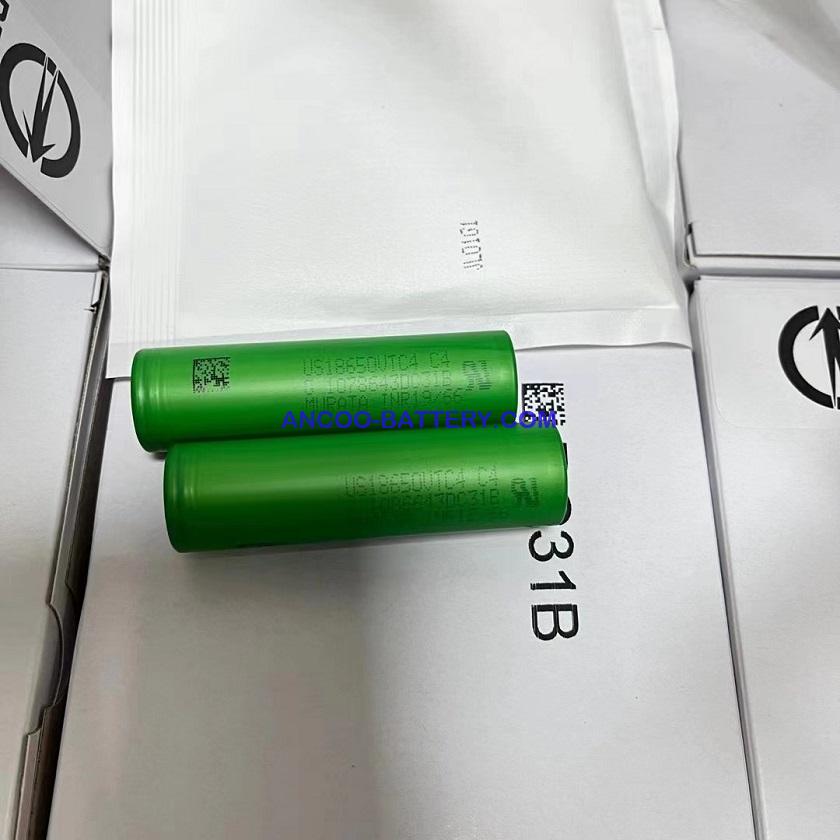

>100K in stock, original packing, fast shipping by ocean or air, contact us for a special offer.

RoHS, CB, UL1642, IEC62133, MSDS, UN38.3 test report, Product Specifications are available.


Sony / Murata VTC4 Datasheet


Model Nominal Capacity
(mAh)
Positive Electrode
Material
Negative Electrode
Material
Nominal (Rated)
Voltage (V)
Weight
(g)
Diameter
(mm)
Height
(mm)
Continuous Max
Discharge Current (A)
Features
US18650VTC4 (NRND) 2,100 NCM Gr 3.6 45.0 φ18 65 30 power
US18650VTC4A (NRND) 2,100 NCM Gr 3.7 46.8 φ18 65 35 power
US18650VTC5 2,600 NCA Gr 3.6 44.3 φ18 65 30 power
US18650VTC5A 2,600 NCA Gr, SiO 3.6 47.1 φ18 65 35 power
US18650VTC5D 2,800 NCA Gr, SiO 3.6 46.7 φ18 65 35 power
US18650NC1 (NRND) 2,900 NCA Gr 3.6 45.3 φ18 65 8 runtime
US18650VTC6 3,120 NCA Gr, SiO 3.6 46.6 φ18 65 30 power
US18650VC7 (NRND) 3,500 NCA Gr, SiO 3.6 47.2 φ18 65 8 runtime
US18650FTC1 (NRND) 1,100 LFP Gr 3.2 38.8 φ18 65 20 life, safety
US21700VTC6A 4,100 NCA Gr, SiO 3.6 67.5 φ21 70 40 power
US26650FTC1A (NRND) 3,000 LFP Gr 3.2 84.0 φ26 66 25 life, safety
