Samsung SDI Li-ion cells

  • Samsung 20S 18650 2000mAh 30A Super Power Battery
  • Samsung 20S 18650 2000mAh 30A Super Power Battery
Samsung 20S 18650 2000mAh 30A Super Power BatterySamsung 20S 18650 2000mAh 30A Super Power Battery

Samsung 20S 18650 2000mAh 30A Super Power Battery

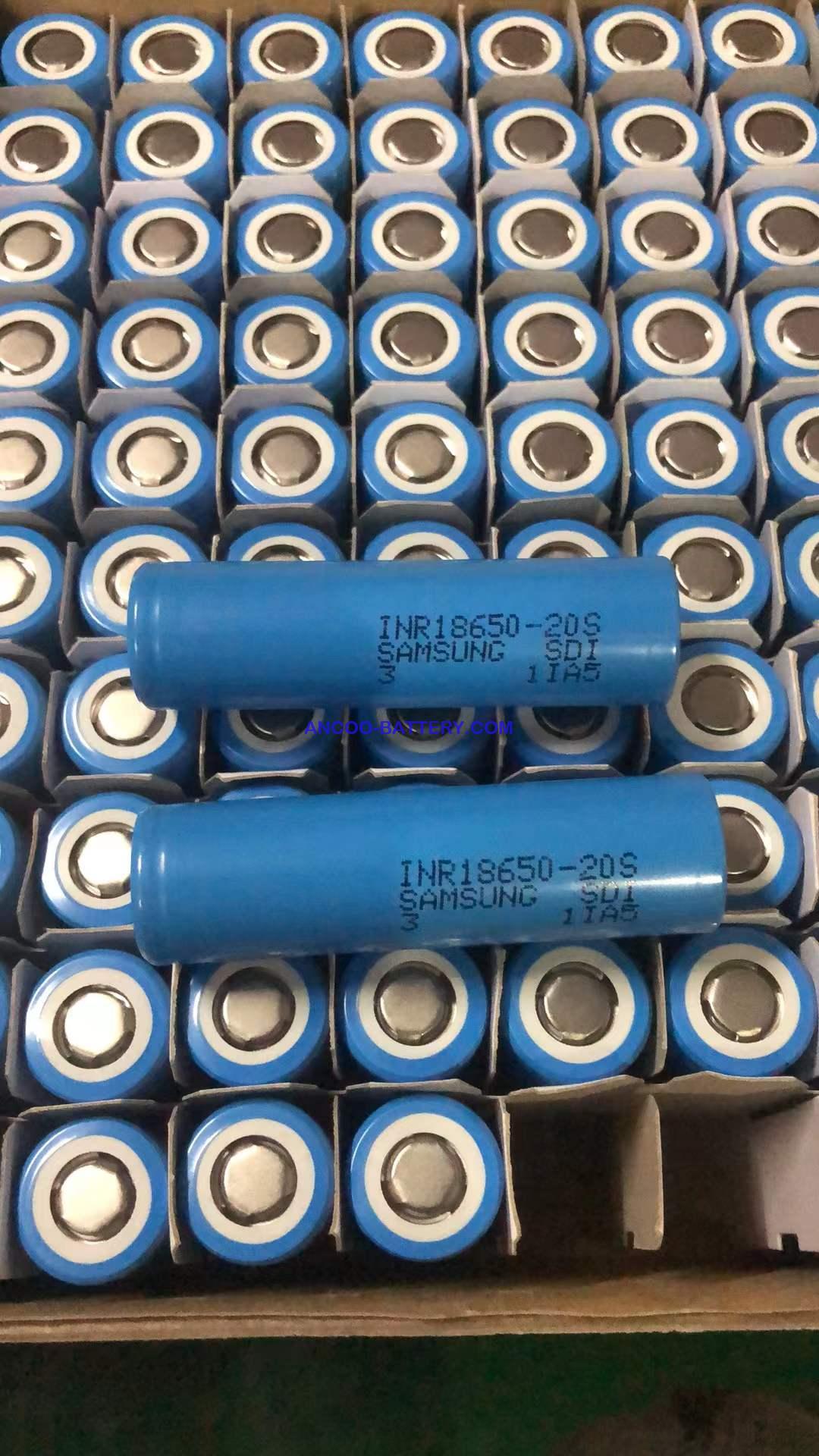

Samsung 20S 18650 30A Super Power Battery Cells

SDI 20S, Large qty in stock, original packing, fast shipping by air or ocean.
SDS UN38.3 UL1642 CB IEC62133, test reports and certificates are available.

Samsung 20S Cell Specs:

1.0. This product specification has been prepared to specify the rechargeable lithium-ion cell('cells') to be supplied to the customer by Samsung SDI Co., Ltd.

2.1 Description lithium-ion rechargeable cell
2.2 Model name INR18650-20S
3.0. Nominal specifications
3.1 Standard discharge capacity Min. 2,000mAh
- Charge: 0.5C (1.0A), 4.20V, 0.05C(100mA) cut-off
- Discharge: 0.2C (400mA), 2.5V cut-off
* 1C = 2000mA
3.2 Rated discharge capacity Min. 1,950mAh
- Charge: 4A, 4.20V, CCCV 100mA cut-off
- Discharge: 10A , 2.5V cut-off
3.2 Nominal voltage 3.6V
3.3 Standard charge CC-CV, 1.0A, 4.2V, 100mA cut-off
3.4 Rated charge CC-CV, 4A, 4.2V, 100mA cut-off
3.5 Charging time
Standard charge : 160min / 100mA cut-off
Rapid charge: 60min (at 25℃) / 100mA cut-off
3.6 Max. continuous discharge(Continuous) 30A(at 25℃), 60% at 250 cycle

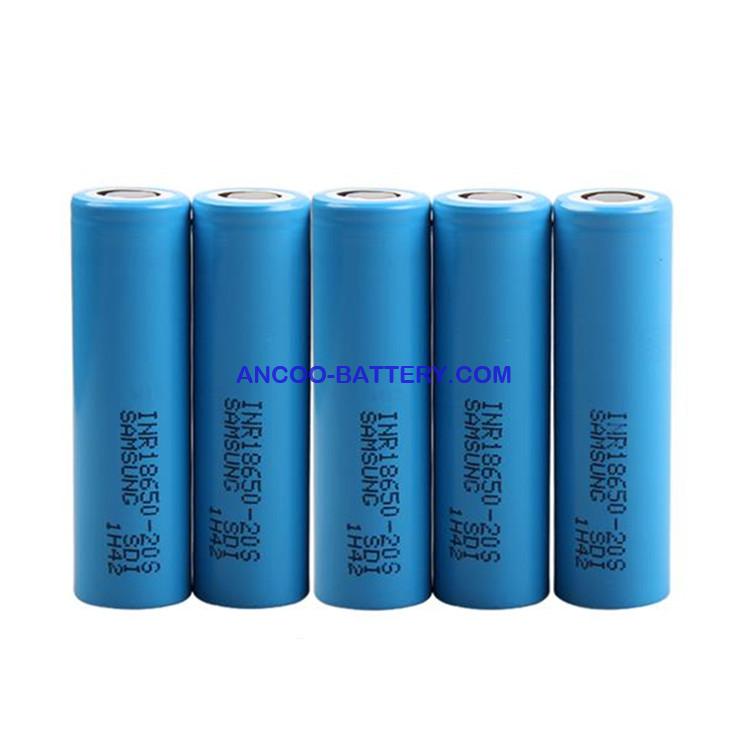

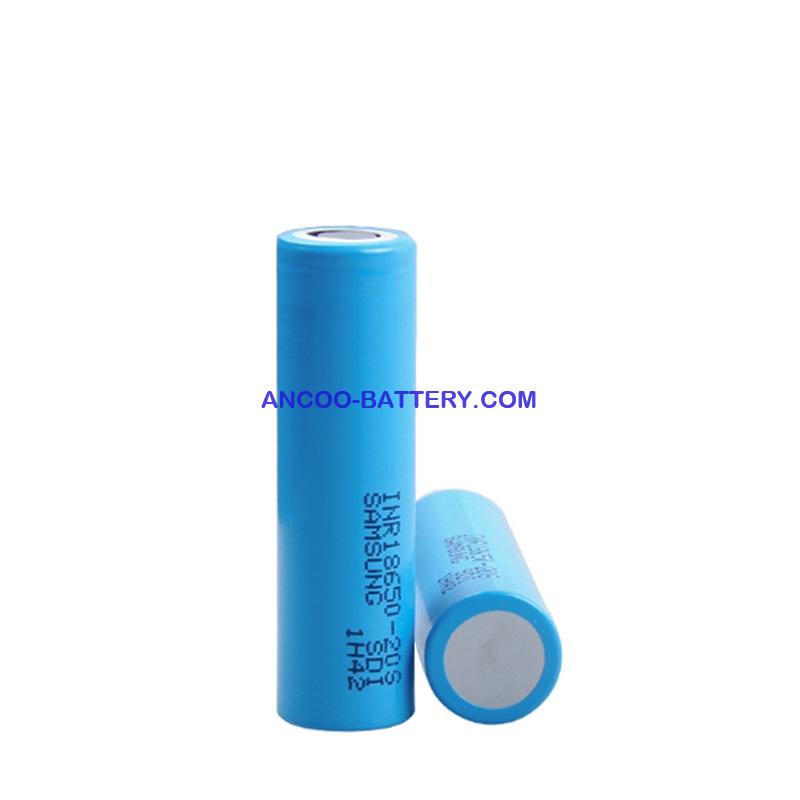

Samsung SDI INR18650-20S:
