Samsung SDI Li-ion cells

  • Samsung 94Ah 3.7V 350Wh NCM Lithium-ion Battery Cells
Samsung 94Ah 3.7V 350Wh NCM Lithium-ion Battery Cells

Samsung 94Ah 3.7V 350Wh NCM Lithium-ion Battery Cells

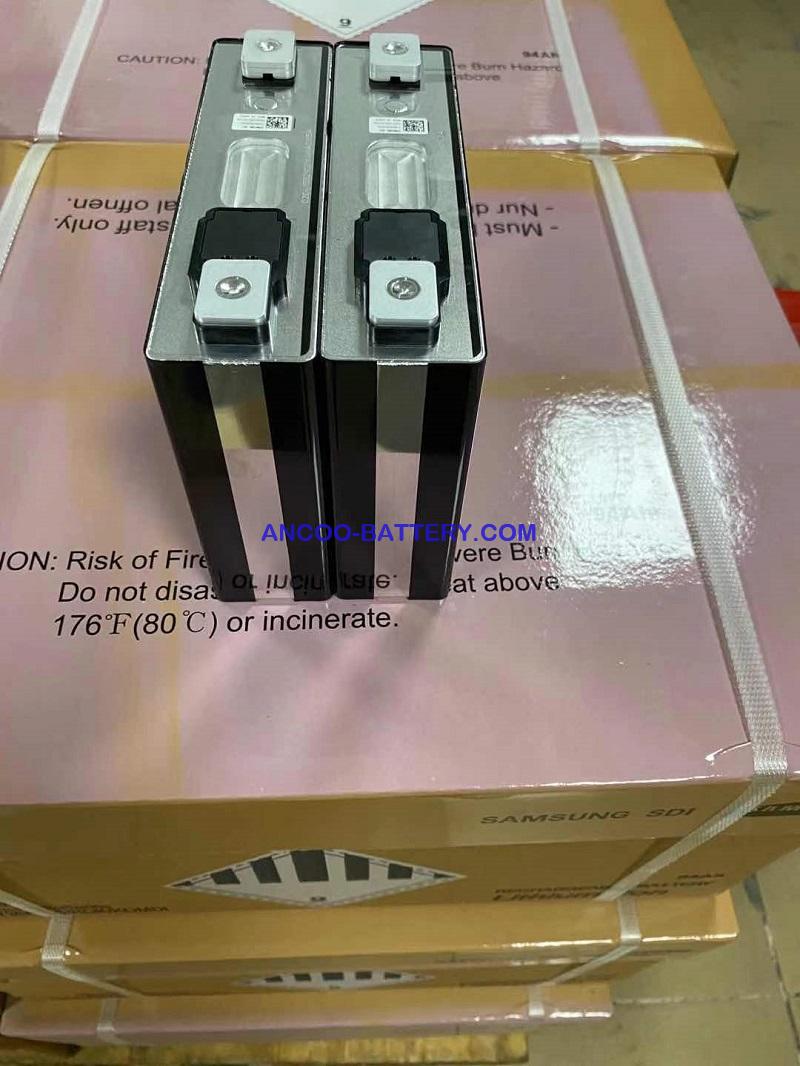

Samsung SDI 94Ah 3.7V 350Wh NMC Lithium-ion Battery

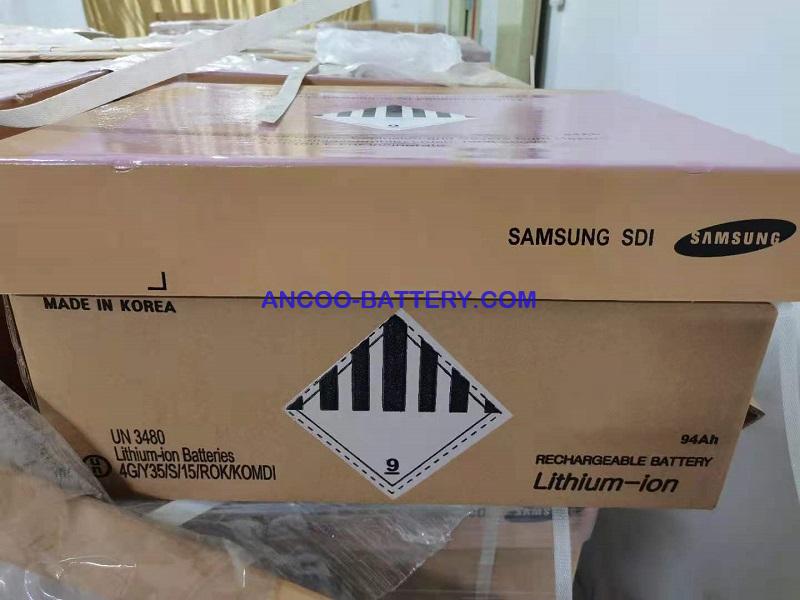

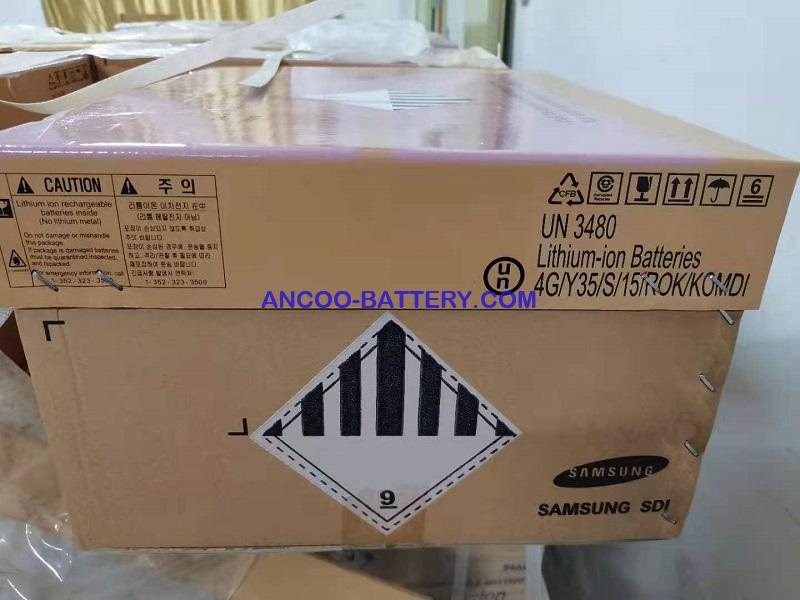

20K New cells in stock, shipping by sea or air in a few days.

MSDS, UN38.3 and other safty certificates


Introduction of Samsung 94Ah NCM cells

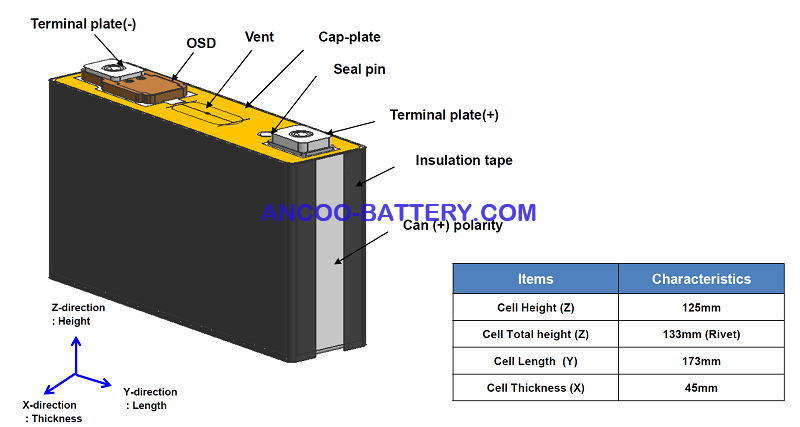

Cell Technical Specification:

Nominal voltage 3,68V and the operational voltage is 2,75V – 4,15V
Recommend charging/discharging current is 0,33C (31A)
Cycle life: 3.200 cycles at 80% DoD (Deep of Discharge) up to 80% residual capacity (at discharge current 94A)
Maximum discharge current is 1C continuously and peak 4,3C (413A, <5 s).
Maximum charging current is 0,5C continuously
Dimensions: 173 x 125 x 45 mm
Weight: 2 Kg
Charging temperature: 0°C ~ 60°C

Discharging temperature: -40°C ~ 60°C

Deep cycle life > 3,200 cycles

Test result: More than 100Ah by 0.2C discharge
