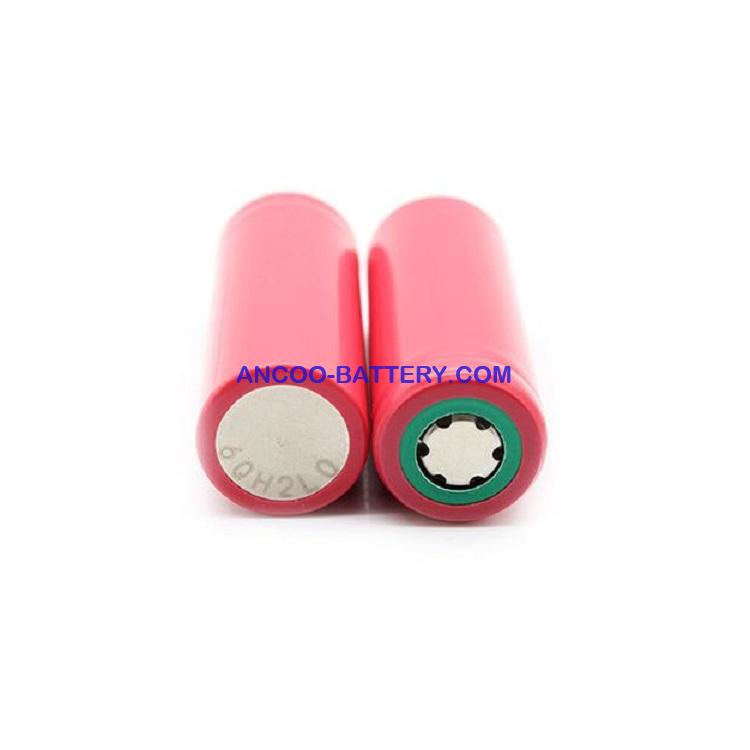

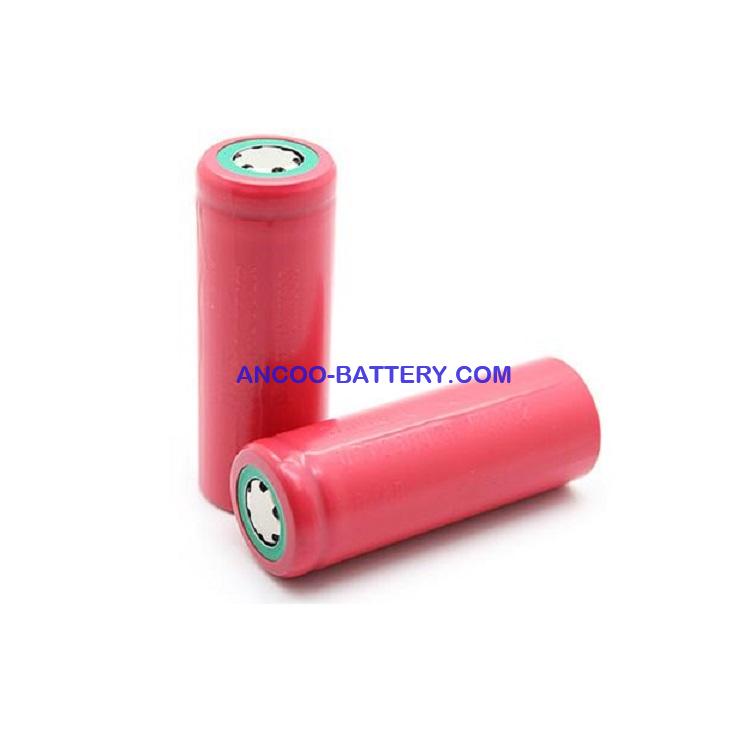

Panasonic UR18500F 1700MAH 3.7V Li-ion Battery

>20K in stock, fast shipping by air or ocean, contact us for a special offer.

SDS UN38.3 UL1642 CB IEC62133, test reports and certificates are available.

Panasonic UR18500F Cell Specifications

Typical Capacity 1700 mAh
Nominal Voltage 3.7V
Charging Method: Constant Current -Constant Voltage
Charging Voltage 4.2V
Charging Curren Std. 1620mA
Charging Time 2.5hrs.
Ambient Tem perature Charge 0~+40C
Dis charge -20~ +60°C
Storage -20~+50C
Weight (Max.) 33.5g
Dimensions (Max.) (D) 18.10mm (H) 49.30m m
Volum etric Energy Density_ 472Wh/L
Gravim etric Energy Density 178Wh/kg

Download UR18500F Datasheet
