Panasonic UF553450ZP Battery 1200mAh 3.7V Li-ion

INQUIRY

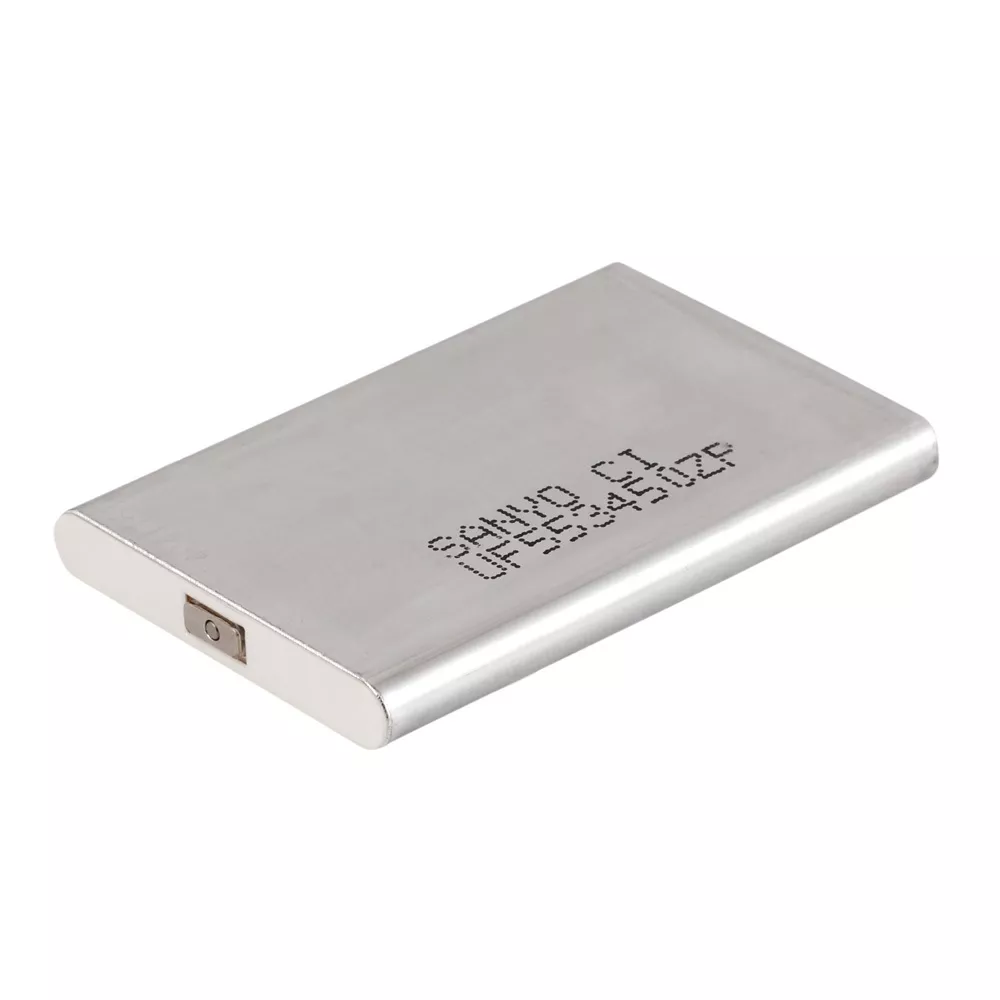

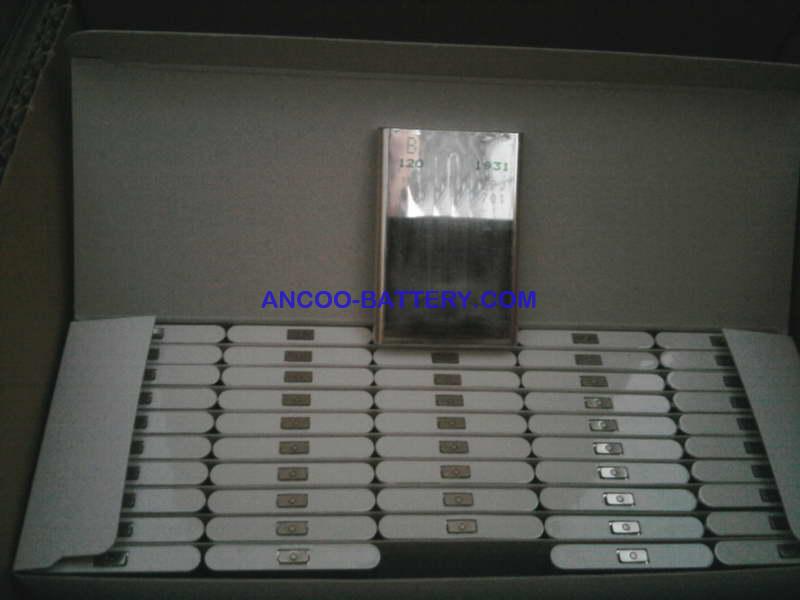

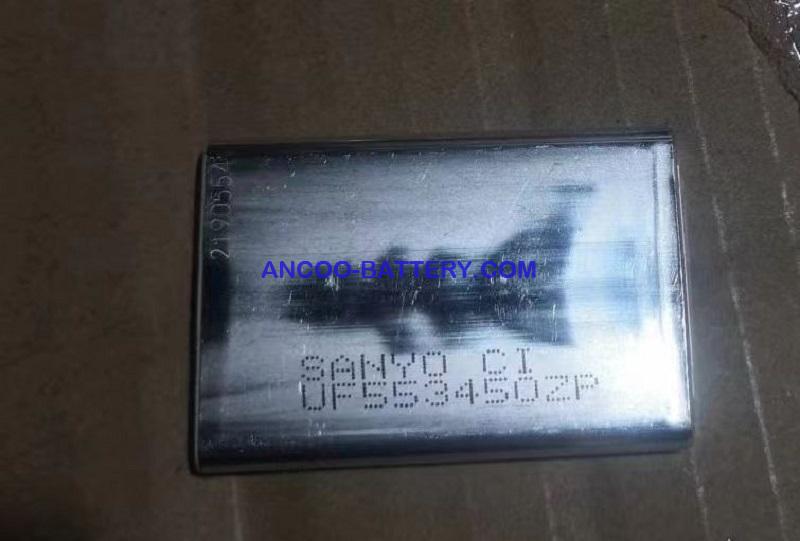

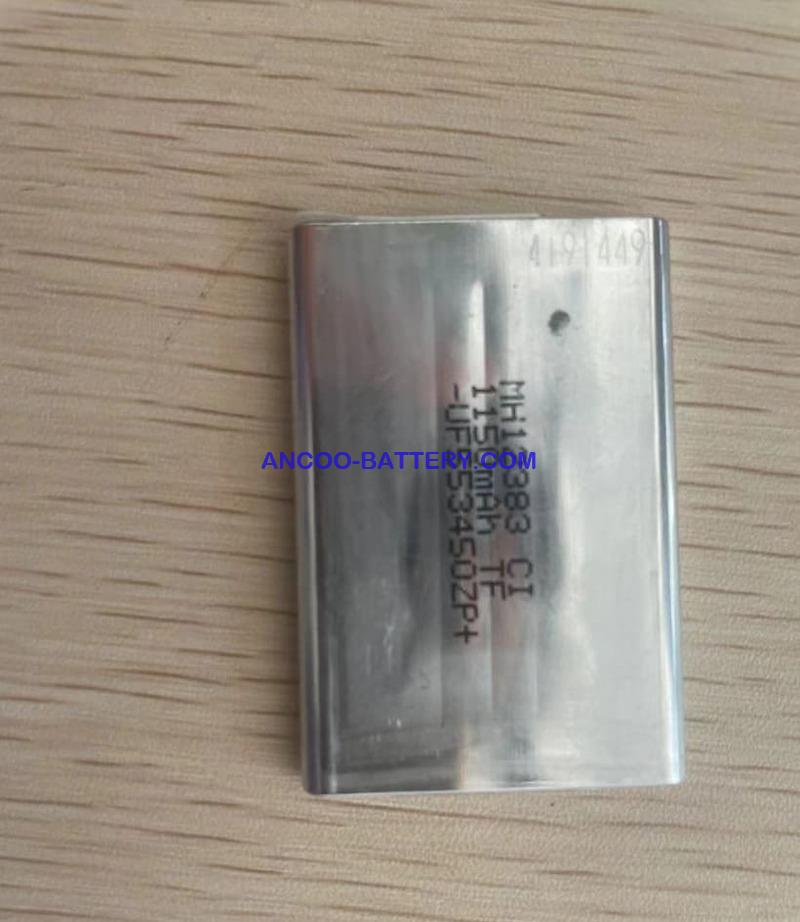

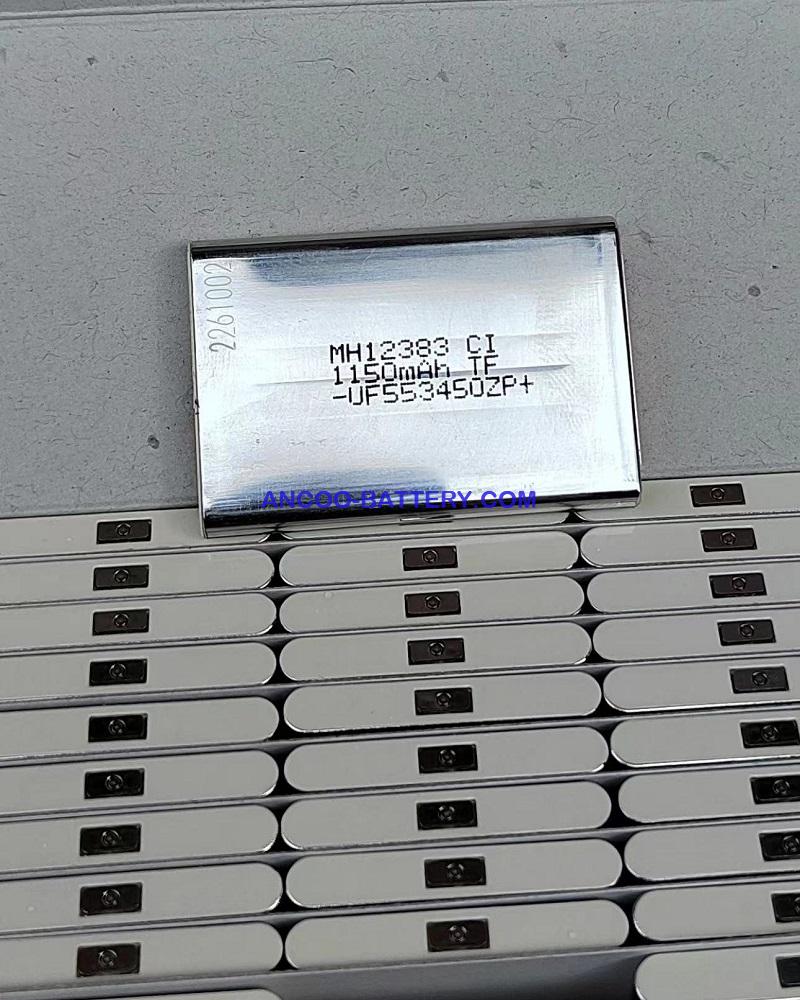

Panasonic UF553450ZP 1200mAh Li-ion Battery cells

In stock, we hold full MSDS UN38.3 RoHS CB UL1642 IEC62133 test reports and certificates.

1. Extent of the application

This specification is applied to the Panasonic Lithium Ion Battery of the above mentioned type for a Portable telephone

2. Battery Classification and Type

2.1 Battery Classification: Panasonic 553450 Li-Ion Battery
2.2 Battery Type: UF553450ZP (Sanyo 553450ZP)

3. Specifications of Panasonic UF553450ZP

3.1 Nominal Capacity 1200mAh 0.2CA discharge
3.2 Nominal Voltage 3.70V
3.3 End Voltage 2.75V
3.4 Charging Current (Std.) 1C(=1.2)A 0 ~ +40℃
3.5 Charging Voltage 4.20±0.03V
3.6 Charging Time (Std.) 3hours
3.7 Discharging Current (Std.) 1.2A, -20 ~ +60℃
3.8 Discharging Current (Max.) 2.40A 0 ~ +40℃
3.9 Internal Resistance less than 60mΩ AC Impedance 1kHz
3.10 Weight less than 22.3g
