Sanyo Lithium-ion Cells

  • SANYO NCR18650BF 3350mAh 18650 Battery
  • SANYO NCR18650BF 3350mAh 18650 Battery
SANYO NCR18650BF 3350mAh 18650 BatterySANYO NCR18650BF 3350mAh 18650 Battery

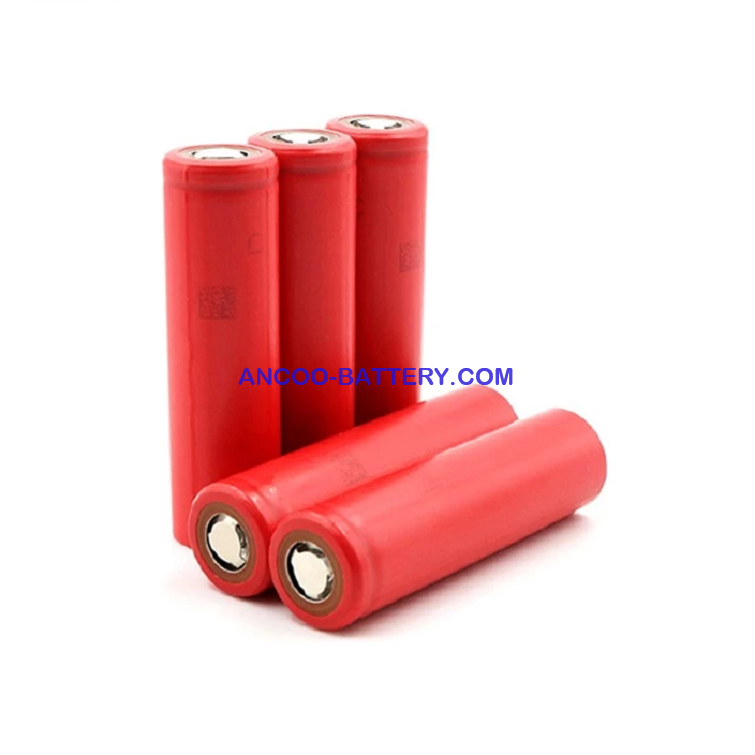

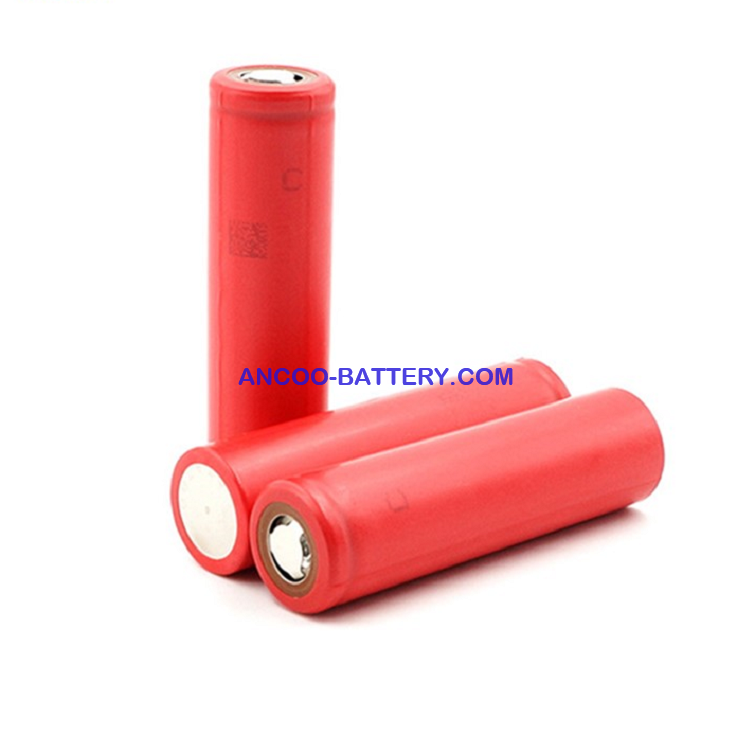

SANYO NCR18650BF 3350mAh 18650 Battery

SANYO NCR18650BF Panasonic 3350MAH 3.6V 18650 Li-ion Batteries

In stock, fresh cells with original packing, fast shipping by air or sea,
MSDS UN38.3 BIS CB IEC62133 UL1642 Test reports and certificates.


Cylindrical Lithium-ion batteries of Panasonic/Sanyo

Type Voltage (V) Nominal capacity Max. cont. current Dimensions (mm) Construction
UR18650RX 3,6V 2000mAh 20A ø 18,5×65,3 Cylindrical
UR18650AY 3,6V 2150mAh 4,3A ø 18,3×64,9 Cylindrical
UR18650AA 3,6V 2150mAh 5A ø 18,3×65,1 Cylindrical
NCR18650ZM2 3,6V 2750mAh 10A ø 18,3×65,3 Cylindrical
NCR18500A 3,6V 2040mAh 4A ø 18,5×49,5 Cylindrical
NCR18650BD 3,6V 3030mAh 10A ø 18,5×65,3 Cylindrical
NCR18650BF 3,6V 3250mAh 4,87A ø 18,5×65,3 Cylindrical
NCR18650GA 3,6V 3350mAh 8A ø 18,5×65,3 Cylindrical

Features of NCR18650BF:

Sanyo NCR18650BF is a very good 18650 Battery with 3350mAh capacity and max 4.85A discharge current, NCR18650BF is a slitterly improved version of Panasonic NCR18650B which is the battery cell used in Tesla Model S, it is also widely used in robotics, golf car, e-cigarette, flashlight, laptops, medical equipment, power banks, communication equipment, military portable device, power tools, ev toys, ev bikes.

NCR18650B = NCR18650BF, these two cells almost at the same performace.

The difference between the new BF and the older B model is that this battery includes the chemical "SiO" or silicon monoxide. In August 2014, the Berkeley National Laboratory found that the addition of SiO can improve the performance of li-ion batteries by up to 20%.


SANYO NCR18650BF Specifications

Nominal Capacity: 3250mAh (3200mAh Minimum, 3350mAh Typical)
Nominal Voltage: 3.6V
Discharge End Voltage: 2.5V
Standard Charging Current: 1625mA(0.5C)
Charging Voltage: 4.20
Max. Continuous Discharging Current: 4.875A
Internal Resistance:  less then 48milli-ohms
Weight: 47.5g


NCR18650B, NCR18650BF

Panasonic Battery NCR18650B 3350mAh

Panasoni NCR18650B 3350mAh 5A
