Molicel Battery Cells

MOLICEL M50A 21700 5000mAh 4C 3.6V Battery

MOLICEL M50A 21700 5000mAh 4C 3.6V Battery

INQUIRY

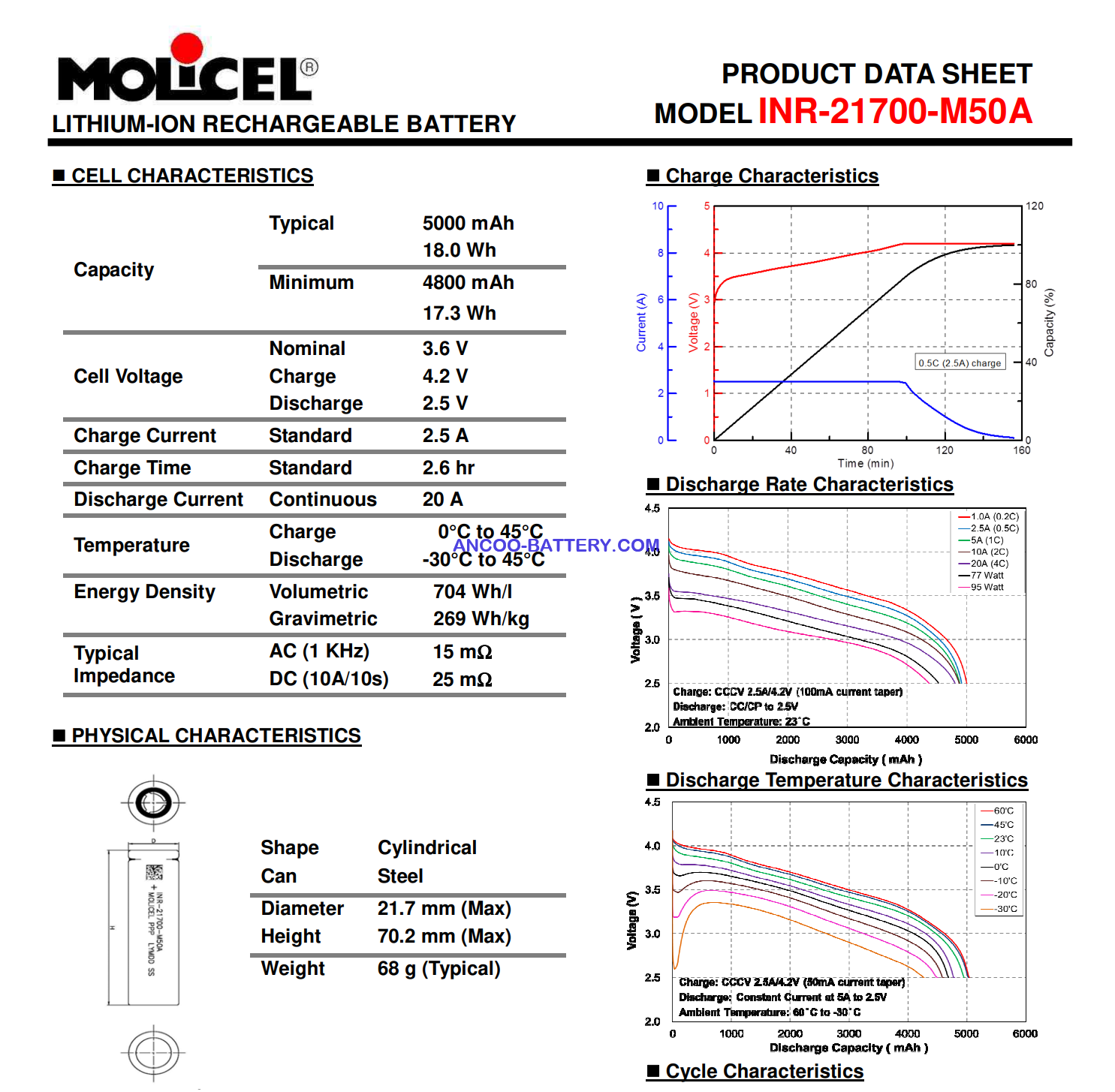

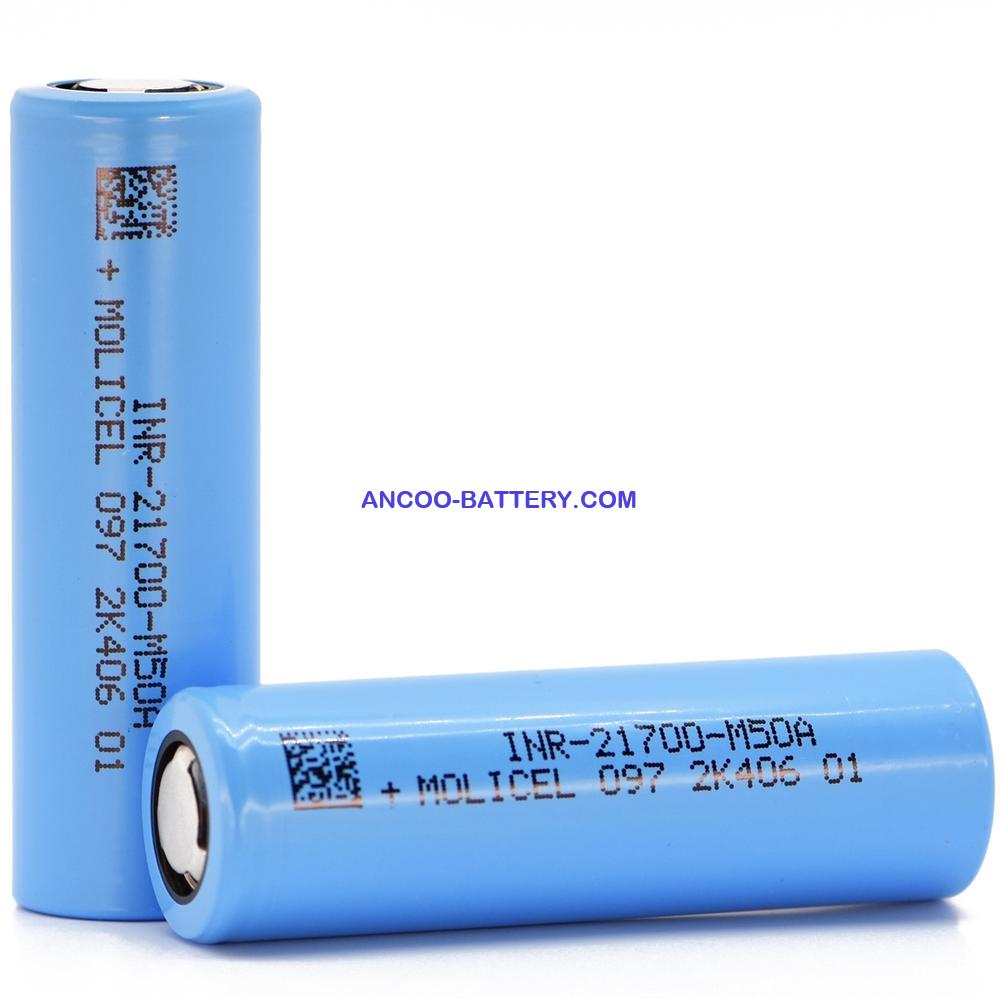

MOLICEL INR-21700-M50A 5000mAh 4C 3.6V Lithium-ion Battery

MSDS UN38.3 RoHS UL1642 BIS CB IEC62133 are passed

Typical Capacity 5000mAh 18.0Wh
Minimum Capacity 4800 mAh 17.3 Wh
Cell Voltage
Nominal 3.6 V
Charge 4.2 V
Discharge 2.5 V
Charge Current Standard 2.5 A
Charge Time Standard 2.6 hr
Discharge Current Continuous 20 A
Temperature
Charge 0°C to 45°C
Discharge -30°C to 45°C
Energy Density Volumetric 704 Wh/l
Gravimetric 269 Wh/kg
